Check

View as Markdown

The Check node looks at a set of conditions in order and returns one label, such as APPROVED, NEEDS_REVIEW, or DECLINED. It gives a workflow a single, clear conclusion that later steps, reports, and dashboards can all read.

When to use it

  • You want one clear verdict after several earlier steps (a score, a status, a lookup) have run.
  • You want that verdict to show up in run history and reporting so anyone can see what the workflow decided.
  • You need a final result to hand back from a Sub Graph.

Check does not branch the workflow, it only produces a label. If you need the run to follow different paths, use Conditional instead.

Inputs

FieldWhat it’s forExample
ConditionsAn ordered list of yes/no tests. The first one that is true wins.Risk score is 80 or higher
OutcomesThe label for each condition, in the same order.APPROVED
Default outcomeThe label used when no condition is true.DECLINED

Conditions and outcomes are paired by position: the first condition maps to the first outcome, the second to the second, and so on. Conditions are written as expressions that read values from earlier steps.

Outputs

FieldWhat you get back
OutcomeThe single label that was selected.

Example

An agency runs a workflow that reviews inbound quote requests. Earlier steps have already scored the applicant’s risk and confirmed their documents are complete. A Check node turns those results into one decision for Sarah Chen’s request:

  • If risk score is 80 or higher and documents are complete, outcome is APPROVED.
  • If risk score is 50 or higher, outcome is NEEDS_REVIEW.
  • Otherwise, the default outcome is DECLINED.

Because Check evaluates conditions top to bottom and stops at the first match, list the strictest condition first. The chosen label then appears in the run’s history and can be read by any step that follows.

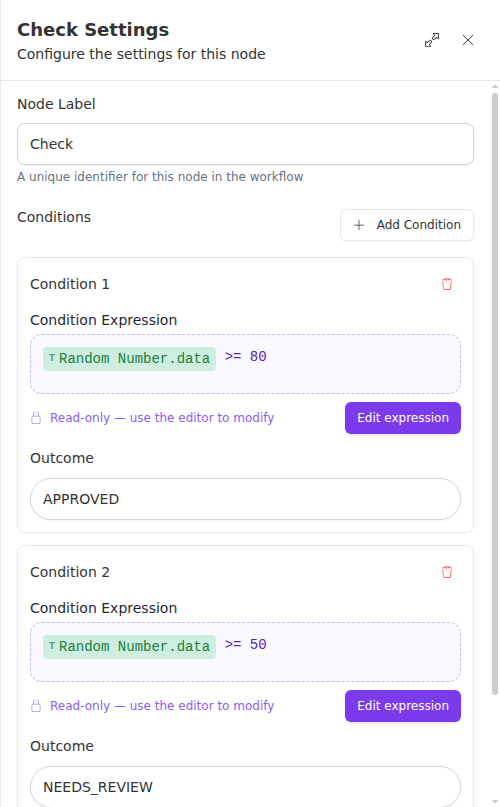

The Check node configuration panel, showing conditions paired with outcomes and a default outcome.

All conditions are evaluated when the node runs. If a condition points at a value that does not exist (for example, a step that was skipped), the run stops with an error, even if an earlier condition already matched. Make sure every value a condition reads is actually available by the time Check runs.

Conditional

Send the run down different paths instead of producing a single label.

Sub Graph

Use Check as the final step to hand a clean outcome back to the parent workflow.
